1. Uniform Radial Clamping Force & Reduced Resistance Heating

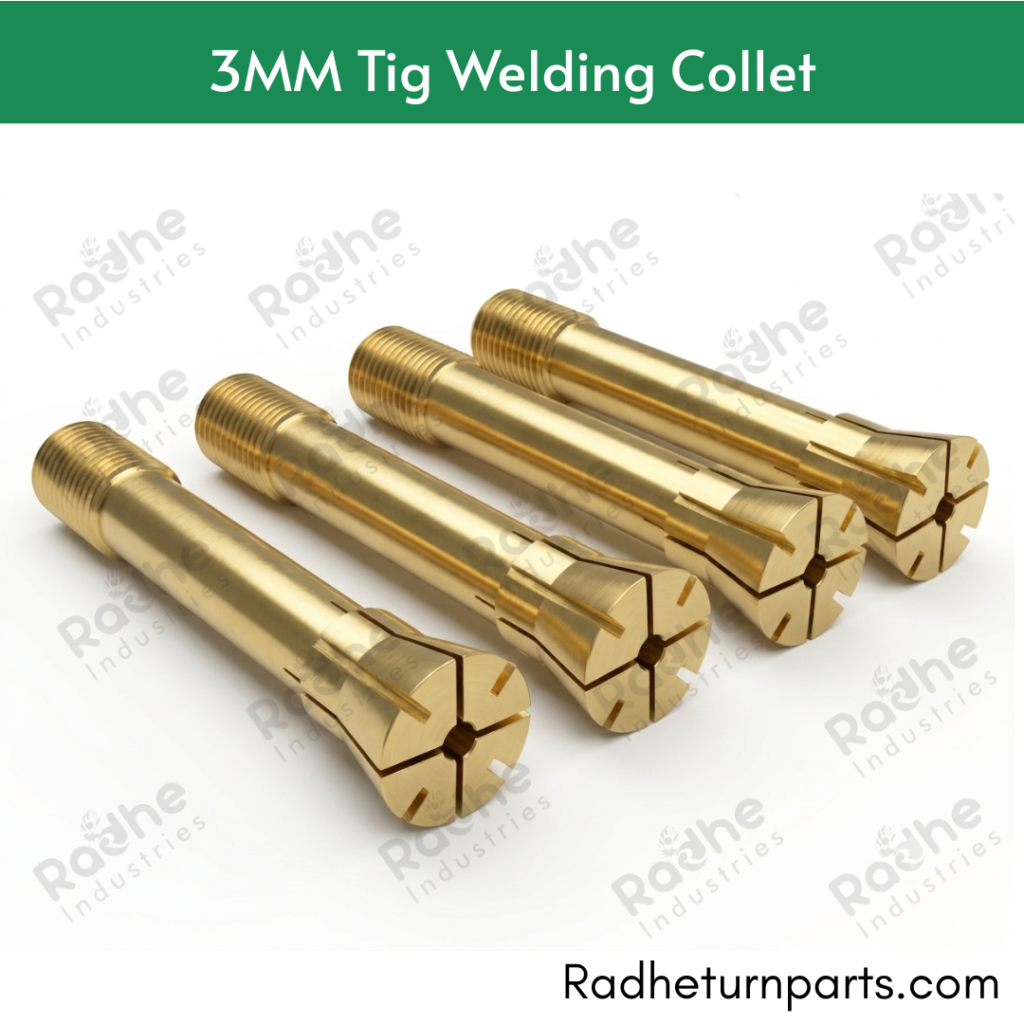

In inferior collets, uneven machining causes point-contact clamping, leading to micro-arcing inside the torch body and tungsten slippage. The Radhe Industries 3mm TIG collet utilizes precision-slotted compression geometry that contracts symmetrically when forced into the collet body taper by the back cap. This $360^\circ$ radial contact minimizes electrical contact resistance ($R_{contact}$), preventing localized hot-spots and thermal fusion.

2. High Thermal Dissipation & Warpage Resistance

TIG welding demands high thermal efficiency, especially during high-amperage AC aluminum welding or extended DC stainless steel runs. Our high-density brass alloy rapidly absorbs extreme thermal loads from the tungsten electrode and dissipates heat into the torch head or water-cooled jackets, drastically reducing collet twisting, bending, and thermal degradation.

3. Precision Concentricity ($\le0.01\text{ mm}$)

Electrode axial alignment is critical for maintaining an accurately directional welding arc. Micro-machined outer tapers and precise internal bores guarantee true-center tungsten alignment, eliminating arc wander, excessive spatter, and seam tracking errors during robotic or manual precision TIG welding.

4. Burr-Free Smooth Internal Bore

Every unit is finished with deburred internal passages, allowing smooth insertion, adjustment, and withdrawal of ground tungsten electrodes without galling, scratching, or binding against the electrode surface.
